small mini pc inter CPU i3 i5 i7

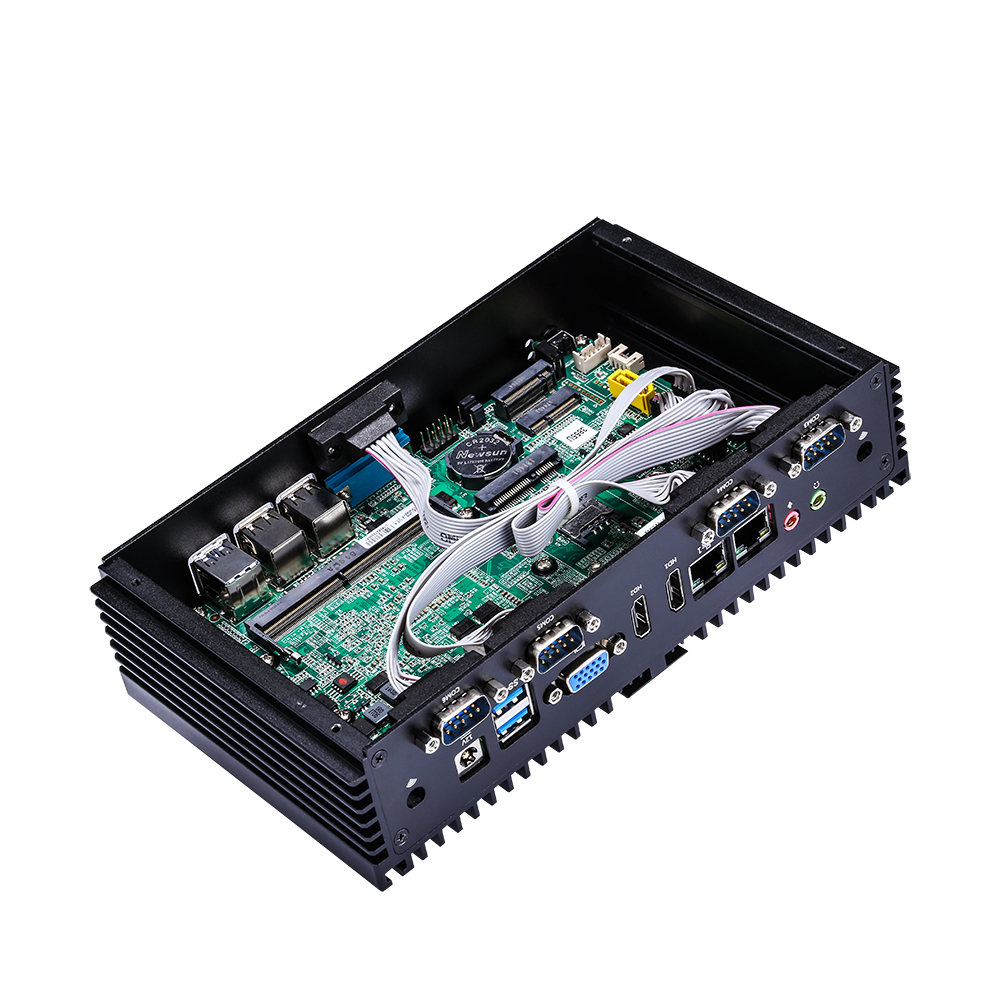

Qotom Mini PC Q510X hardware 3855U 1.6GHz mini computer mini desktop pc

price

US $119.00 - US $135.00 / case

Model NO. Q500X

Delivery FOB

minimum order 1 case

Supply Ability 1000case / Month

Country of Origin Shenzhen

Stock Time 30Day

Quantity

Q500X mini pc micro Product Specifications：

Processor System	CPU	Q510X:Intel 6th Gen Celeron 3855U Dual Core Processor, 1.6GHz, 2M Cache
	CPU TDP	15W
	Memory	1 x DDR4 SO-DIMM Socket (Up to 32G, 2133/2400MHz)
	Chipset	By CPU
	Graphics	Intel® HD Graphics 510
	LAN Chipset	2 x Intel I211-AT Gigabit LAN
	Audio	Realtek HD Audio
	Watch Dog	Yes

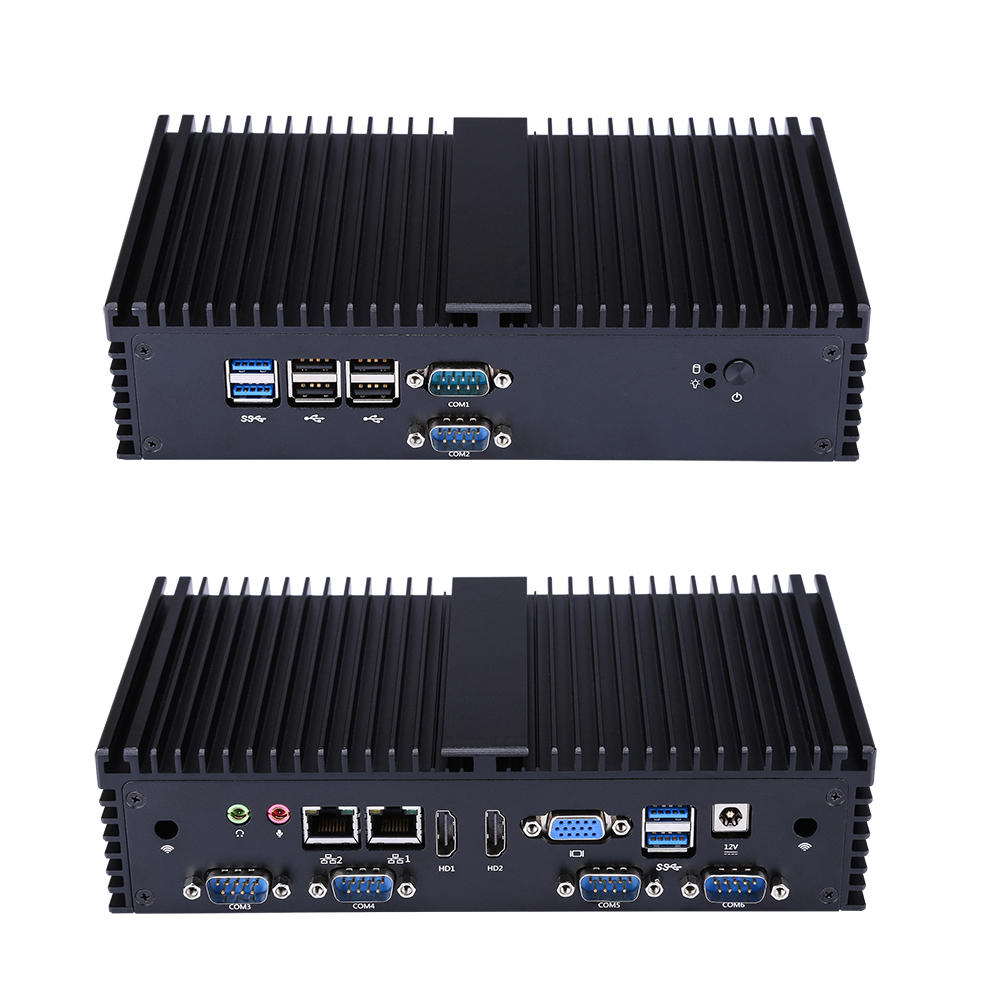

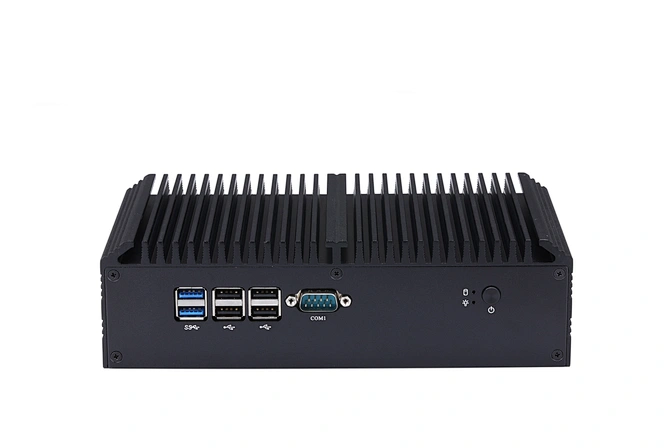

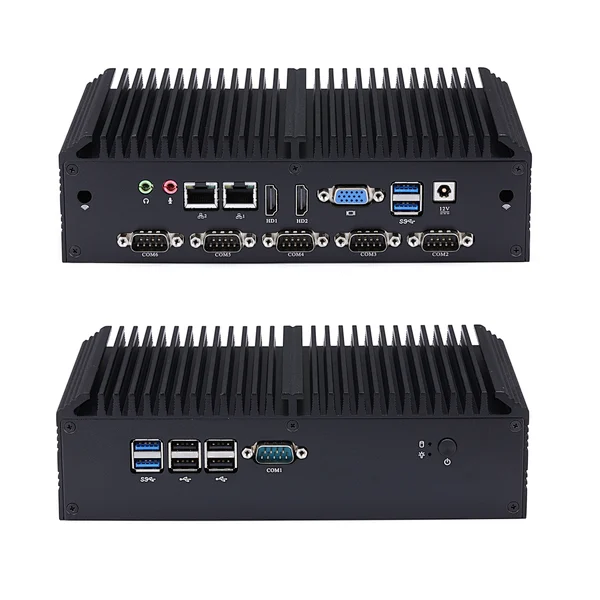

Front I/O	Power Button	1
	LED	1 x Power LED, 1 x HDD LED
	USB	2 x USB 3.0, 4 x USB 2.0
	Serial Port	1 x RS-232

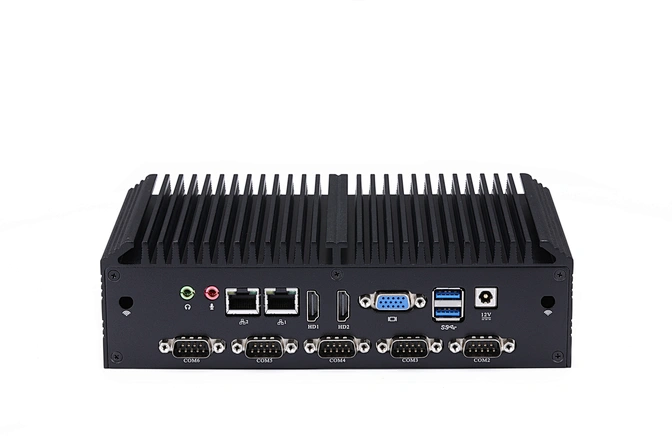

Rear I/O	Power	1 x DC Jack
	Video Output	2 x HDMI, 1 x VGA
	LAN	2 x RJ-45 Port for Gigabit LAN
	USB	2 x USB 3.0
	Audio	1 (Mic-in, Line-out)
	Serial Port	5 x RS-232
Storage	Type	1 x 2.5-inch HDD/SSD 1 x M key M.2 for SSD (Type: 2260, 2280mm)
Expansion	Mini PCIe	1 x Mini PCIe Full-length for 4G, Half-length for Wi-Fi
	M.2	1 x M.2 for SSD (M key, 2280) 1 x M.2 for Wi-Fi (E key, 2230)
	SIM Card Slot	1
	Automatically Boot Jumper	1
	RS-232	COM2/COM3 support 5V/12V
	GPIO	1 x 2.0 Pitch Header (Option)
	RS-485	COM3/4 can be set up as RS-232/RS-485
	DC-in	Header
Power Requirement	Power Adapter	12V3A
Power Requirement	DC Jack	5.5mm, 2.5mm
Environmental	Operating Temp	0°C~50°C
	Non-Operating Temp	-20°C~80°C
	Humidity	10%~90%
Mechanical	Material	Aluminium Alloy
	Dimension	217 x 122 x 62mm
	Weight	2.5kg
	Mounting	VESA Mounting Bracket
	Packaging Dimension	285 x 260 x 93mm
	Kensington Lock	No
	Cooling Mode	Fanless Design
OS Support	Windows 10, Linux

PS:two of COM RS232 could be changed into RS485
