Qotom Q1000P Mini PC Industrial for Intelligent IoT Applications mini pc thin client
price
$124.00 - $135.00 / piece
Q1012P
FOB
1 piece
1000piece / Month
Shenzhen
30Day
Quantity
Place of Origin:Guangdong, China
Brand Name:Qotom/OEM mini pc 32gb ram
Model Number:Q1012P mini pc thin client
Products Status:New
Warranty(Year):1-Year
Plugs Type:US, JP, CN, AU, UK, EU
Product Name:mini pc industrial
mini pc industrial,mini pc thin client,mini pc 32 gb ram
Product Description
Dimension | 155 x 127 x 48mm |
Weight | 1Kg (Reference) |
Power Consumption | 15W |
Onboard CPU | Q1012P:Intel Celeron Processor 4305U,2M Cache, 2.20 GHz Whiskey Lake , 15W , 2 Cores，AES-NI |
Memory | 1 x 2133/2400MHz DDR4 SO-DIMM Socket (Up to 32G) |
Chipset | By CPU |
Hard Disk | Support M key M.2 for SSD (2280mm) and 2.5 inch SATA SSD/HDD |
Graphics | Intel® UHD Graphics for 8th Generation Intel® Processors |
Onboard LAN | 2 x Intel I225-V 2.5 Gigabit LAN |

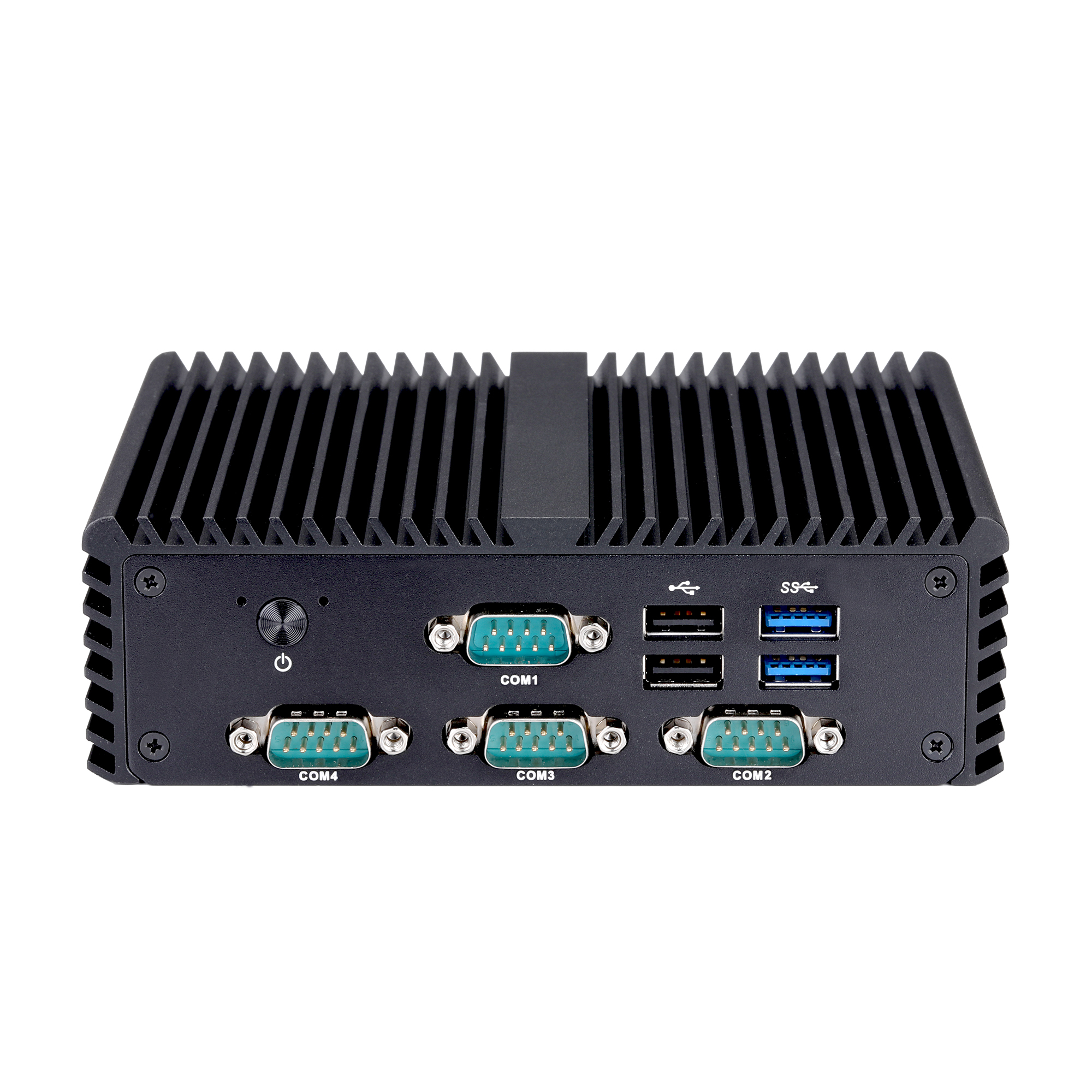

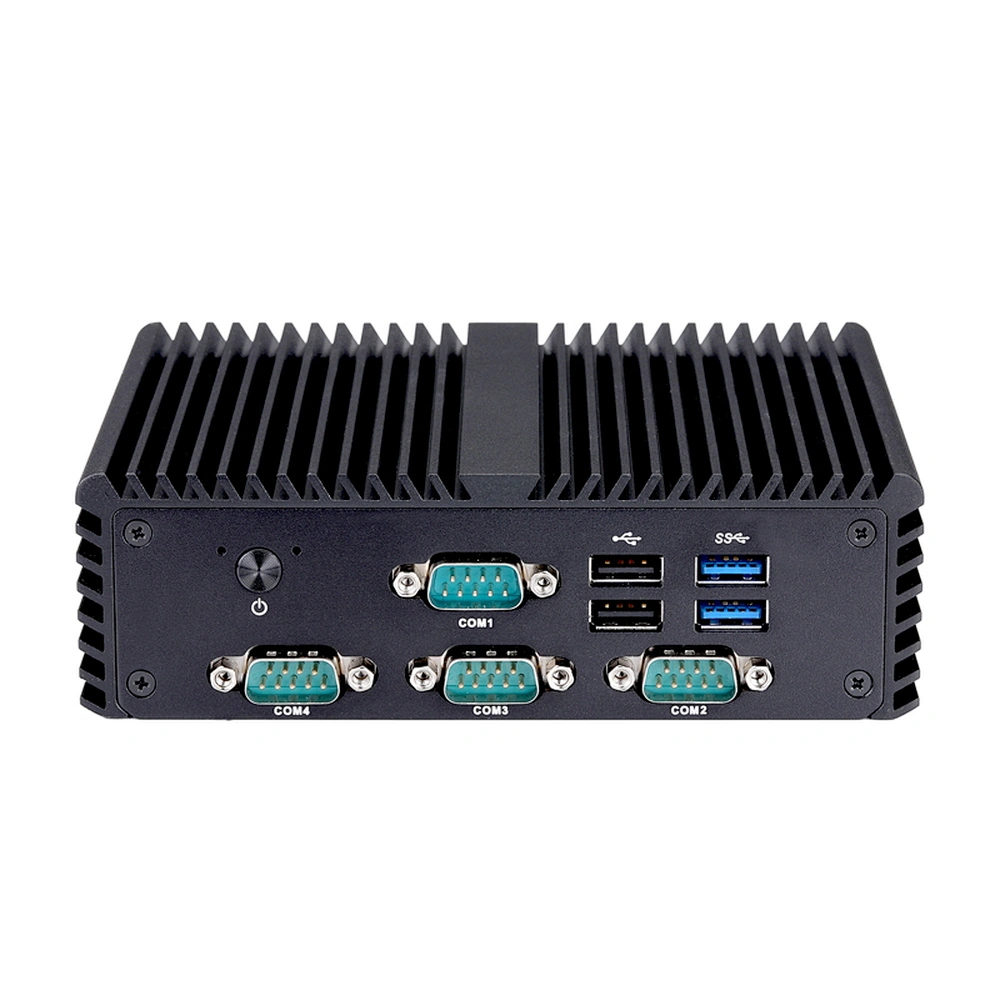

Front-Panel Connectors | • 1 x Power Button • 1 x Power LED, 1 x HDD LED • 2 x USB3.0 ,2 x USB2.0 • 4 x RS-232 Port |
Internal Connectors | • 1 x M.2 for 5G (B key, 3042/3052) • 1 x M.2 for Wi-Fi (E key, 2230) • 1 x GPIO 2.0 Pitch Header(Option) • 1 x SIM Card Slot • 1 x Automatically Boot 2.54 Pitch Header • 1 x COMS Clear Jumper 2.54 Pitch Header |

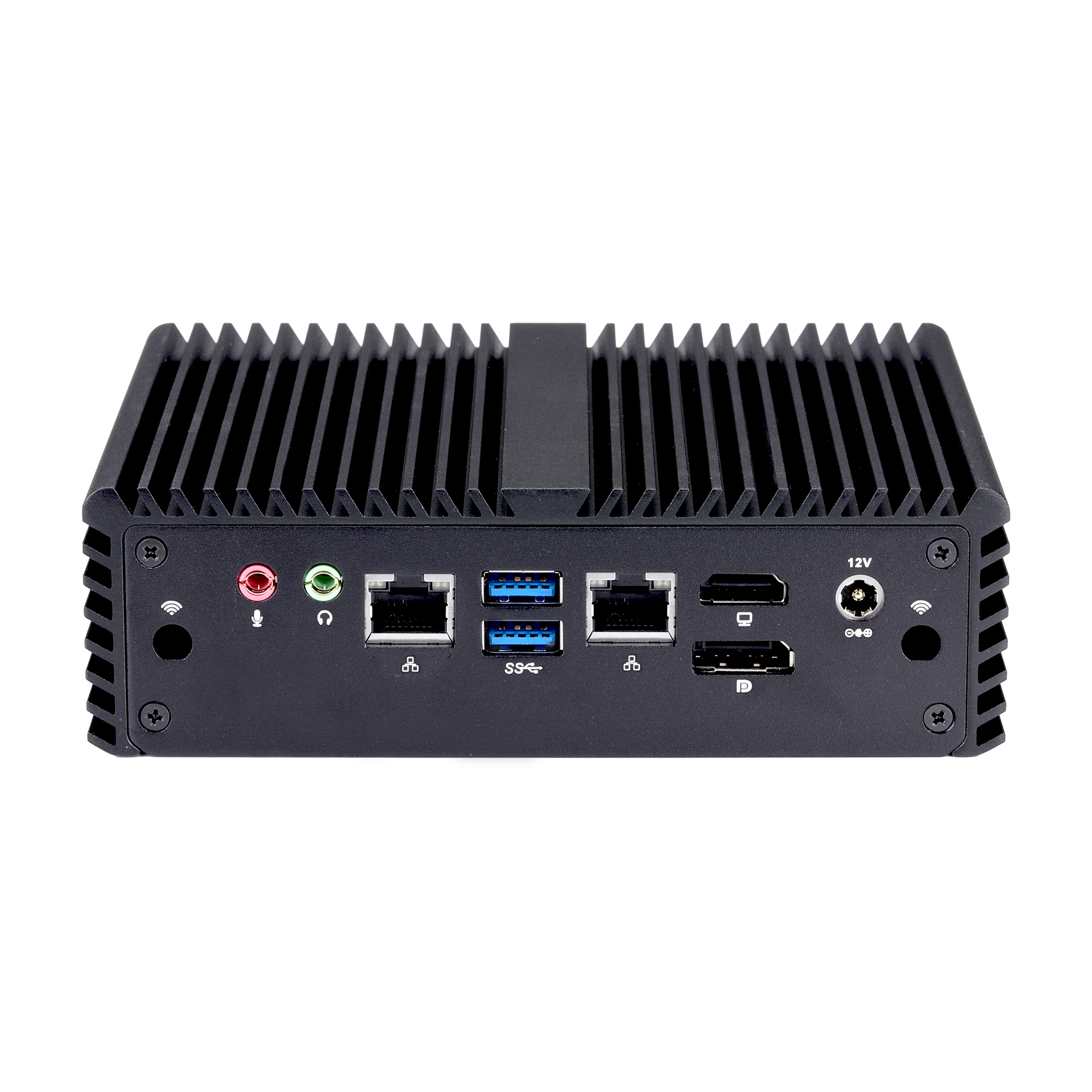

Back-Panel Connectors | • 1 x DC Jack • 1 x DP,1 x HDMI • 2 x RJ-45 Port for 2.5 Gigabit LAN • 2 x USB3.0, 2 x USB2.0 • 2(Mic-In, Line-out) • 1 x VGA(Option) |
Operating System | Support Windows 10, Linux.mini pc industrial,mini pc thin client,mini pc 32 gb ram |
Q1000P mini pc thin client Series Other specification information：
| ordering code | Case | Code Name | Processor Type | Processor Number | # of Cores | # of Threads | Base Frequency | Max Frequency | Cache | Processor Graphics |
| Q1012P | S08 | Whiskey Lake | Celeron | 4305U | 2 | 2 | 2.2GHz | / | 2M | Intel UHD Graphics |
| Q1020P | S08 | Whiskey Lake | Pentium | 5405U | 2 | 4 | 2.3GHz | / | 2M | Intel UHD Graphics |
Q1052P | S08 | Coffee Lake | Core i5 | 8260U | 4 | 8 | 1.6GHz | 3.9GHz | 6M | Intel UHD 620 |
| Q1015P | S08 | Comet Lake | Celeron | 5205U | 2 | 2 | 1.9GHz | / | 2M | Intel UHD Graphics |
| Q1035P | S08 | Comet Lake | Core i3 | 10110U | 2 | 4 | 2.1GHz | 4.1GHz | 4M | Intel UHD Graphics |
| Q1055P | S08 | Comet Lake | Core i5 | 10210U | 4 | 8 | 1.6GHz | 4.2GHz | 6M | Intel UHD Graphics |
| Q1077P | S08 | Comet Lake | Core i7 | 10710U | 6 | 12 | 1.1GHz | 4.7GHz | 12M | Intel UHD Graphics |
Mini PC Windows 11,Fanless Mini PC,Industrial Mini PC
Q1000P mini pc 32gb ram Custom Options:
| Category | Dascription |
| GPIO | 1 |
| RS-485 | 2 |
| VGA | 1 |
Prices vary by configuration, please let us know which model you prefer and we will give you a quote
Details Images
Q1000P mini pc industrial is an industrial-grade fanless computer designed for use in various intelligent IoT fields such as transportation, environmental monitoring, logistics, security, and finance. mini pc 32gb ram with 1 DP, 1 HD, and 1 optional VGA port, as well as 4 USB 3.0 and 2 USB 2.0 ports, making it versatile for multiple applications. The PC also has 3 M.2 and 1 SATA 3.0 slots and 4 RS-232 ports. With 2 Intel I225-V 2.5 Gigabit LAN ports, this PC ensures stable and high-speed data transmission. Its fanless design and low power consumption make it suitable for use in demanding environments. This industrial mini pc thin client is a reliable and efficient solution for intelligent monitoring and data visualization supervision systems.
