$99.00 - $275.00 / set
- Place of Origin:Guangdong, China
- Brand Name:Qotom ultra mini pc
- Model Number:Q300P 2 ethernet mini pc 8gb ram
- Products Status:New
- Warranty(Year):1-Year
- Use:Industrial mini pc 8gb ram
- Plugs Type:US, JP, CN, AU, UK, EU
ultra mini pc,mini pc 8gb ram,2 ethernet mini pc
Q300P Fanless 2 ethernet mini pc 8gb ram Main Features
• 2 x HD, 6 x RS232 ,1 x VGA, 1 x RS485
• 4 x USB 3.0, 2 x USB 2.0, 1 x SATA 3
• 1 x Mini-PCIe, 1 x mSATA
• 2 x Intel I211-AT Gigabit LAN
Model | Qotom-Q300P Series ultra mini pc,mini pc 8gb ram,2 ethernet mini pc | ||||
Material | Aluminum | ||||
Dimension | S08: 187*111*50mm | ||||
Power Consumption | TDP 15W | ||||
Cooling Mode | Fanless Design | ||||
Onboard CPU | Q301P:Intel 4th Gen Intel Celeron 2955U 1.4GHz Dual Core, 2M Cache Q350P:Intel 4th Gen intel Core i3 4200U 1.6GHz up to 2.6GHz Dual Core, 3M Cache Q370P:Intel 4th Gen intel Core i5 4500U 1.8GHz up to 3.0GHz Dual Core, 4M Cache Q305P:Intel 5th Gen Intel Celeron 3205U 1.5GHz Dual Core, 2M Cache Q310P:Intel 5th Gen Intel Celeron 3215U 1.7GHz Dual Core, 2M Cache Q320P:Intel 5th Gen Intel Celeron 3805U 1.9GHz Dual Core, 2M Cache Q335P:Intel 5th Gen intel Core i3 5005U 2.0GHz Dual Core, 3M Cache Q355P:Intel 5th Gen intel Core i5 5200U 2.2GHz up to 2.7GHz Dual Core, 3M Cache Q375P:Intel 5th Gen intel Core i7 5500U 2.4GHz up to 3.0GHz Dual Core, 4M Cache | ||||
Chipset | Intel Soc Chipset | ||||
Onboard VGA | Intel HD Graphics | ||||
Onboard LAN | 2 x Intel I211-AT Gigabit LAN | ||||
Audio Solution | Realtek ALC662 HD Audio | ||||
Operating System | Support Windows 7 /Windows 8 / Windows 10 /Linux Ubuntu etc. (After receiving goods, Qotom will offering a download link for OS drivers.) | ||||
Memory | Max support 8Gb DDR3L 1600MHz SO-DIMM ram 1.35V | ||||
Storage | Max. simultaneously support 1x2.5 inch SATA HDD and 1x mSATA SSD | ||||
Kensington Lock | Support | ||||
Environmental | Power Requirement | ||||
Operating Temp | 0°C~50°C | Power Adapter | 12V3A | ||
Non-Operating Temp | -20°C~80°C | DC Jack | 5.5mm, 2.5mm | ||
Humidity | 10%~90% | Input AC Range | 110V~240V | ||

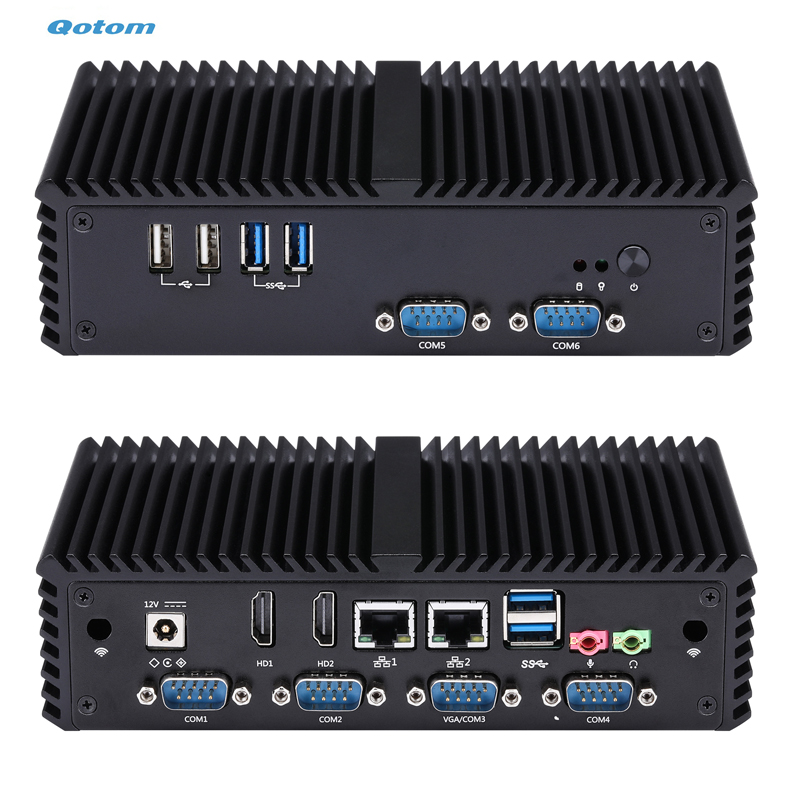

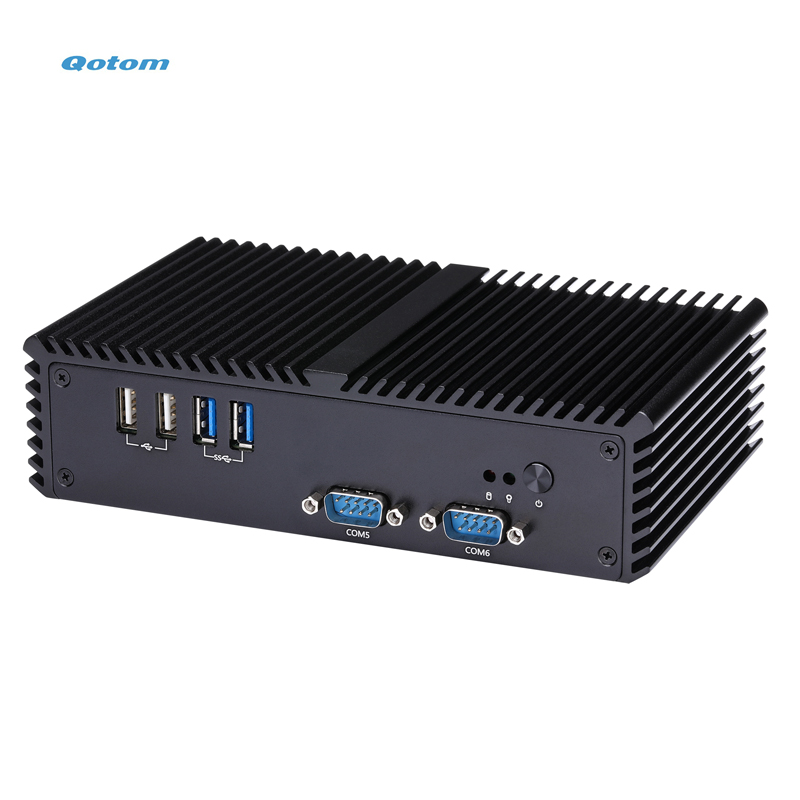

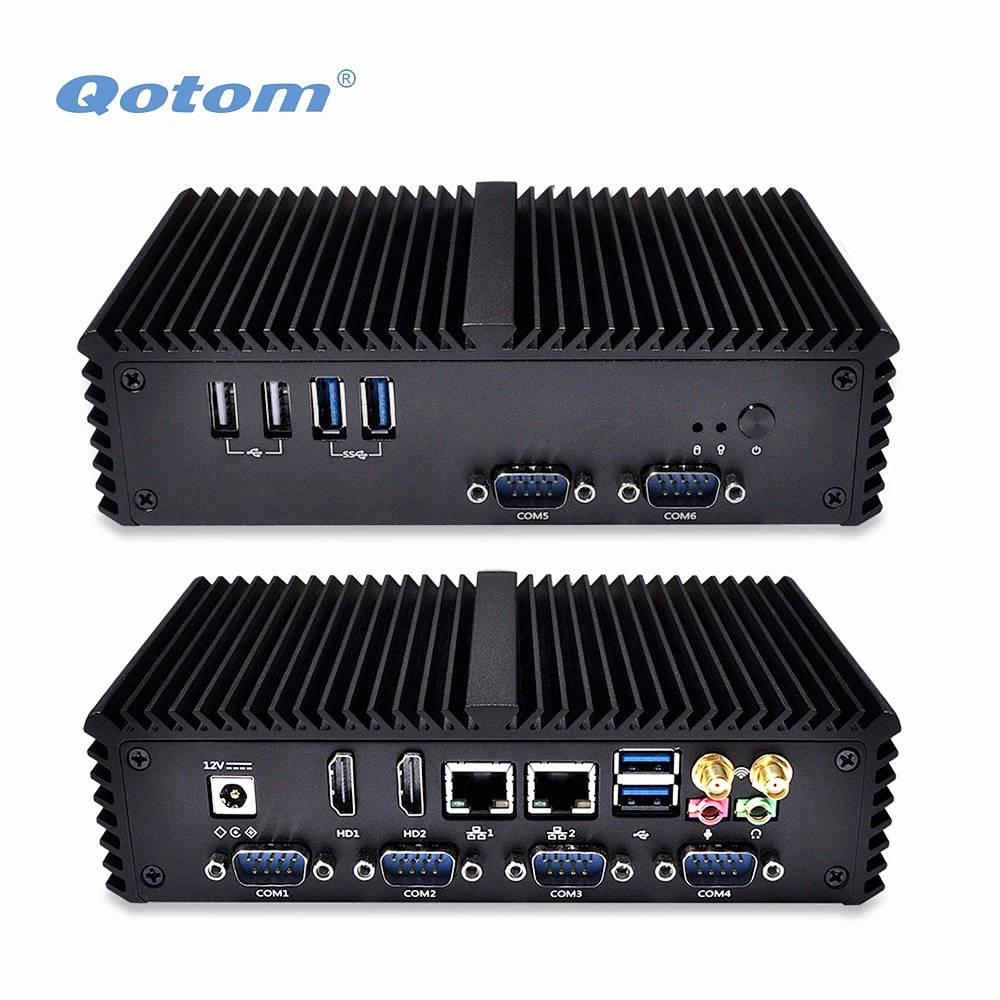

mini pc 8gb ram Q300P Front I/O
1 x Power Button
1 x Power LED
1 x HDD LED
2 x USB 3.0
2 x USB 2.0
2 x RS232 (COM5, COM6)

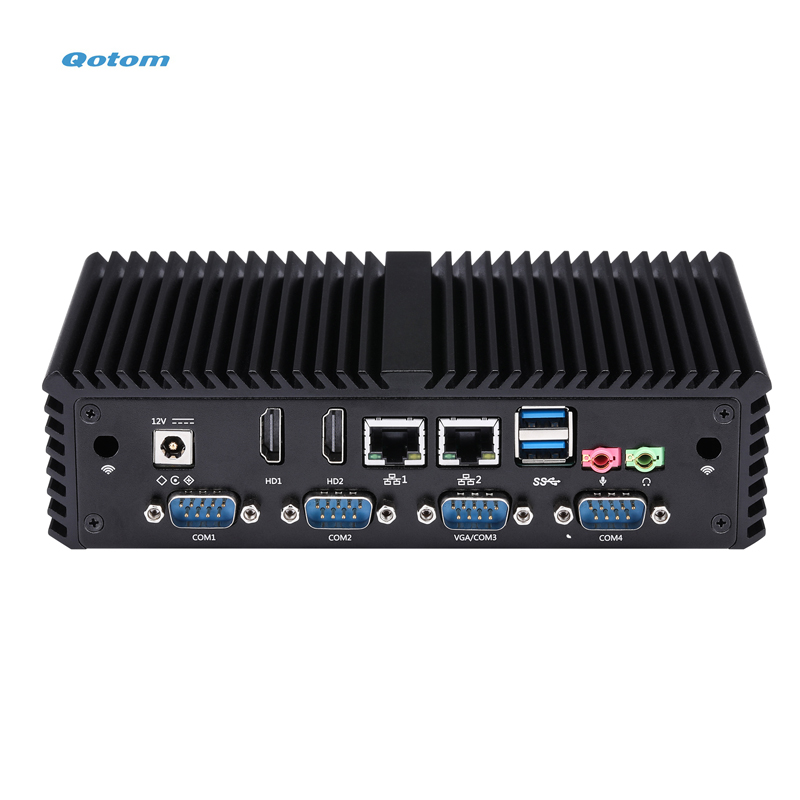

2 ethernet mini pc Q300P Rear I/O
1 x DC Jack
2 x HD
1 x VGA (Optional)
2 x RJ45 Port for Gigabit LAN
1 (Mic-in, Line-out)
2 x USB3.0
4 x RS-232 (COM1, COM2, COM3, COM4)
Expansion
1 x Full size Mini-PCIe for mSATA SSD
1 x Mini-PCIe for Option
1 x SIM Card Slot, 1 x DC-in Header
1 x Automatically Boot Jumper
1 x 2.0 Pitch Header (GPIO)
1 x 2.0 Pitch Header (VGA)
"COM2" can be set up as RS-232/RS-485 (Factory Setting)
"COM3"can be set up as VGA (Factory Setting)

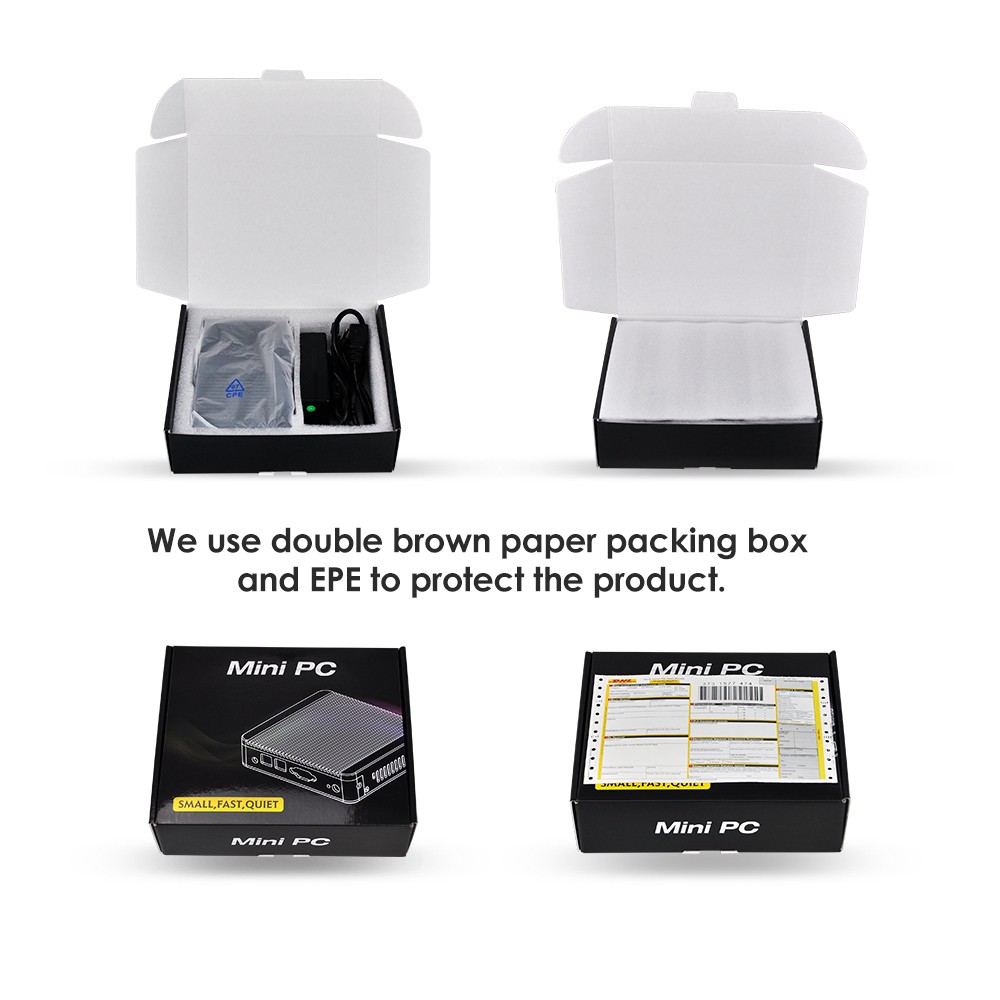

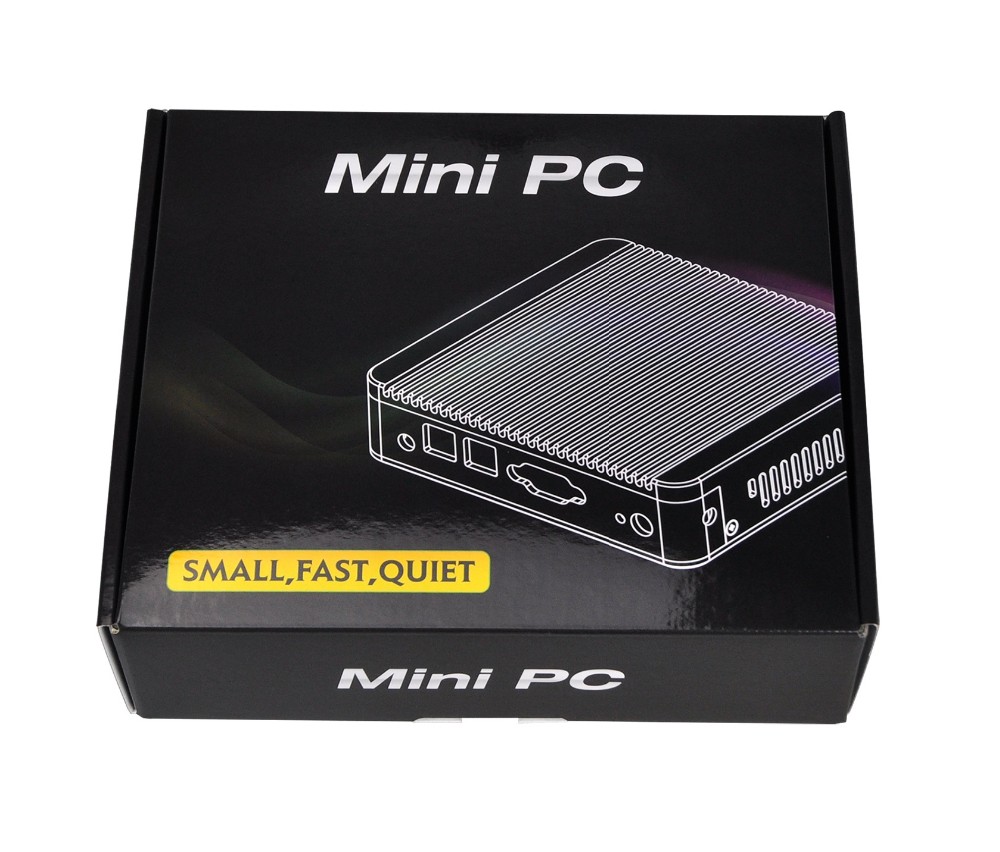

Packing:
We use good quality paper packing box and EPE to protect the product. It's a black color box without company logo.
(OEM packing can be acceptable, MOQ500pcs/times)
Packing List:
1 x Device
1 x 12V3A Power adapter with cable

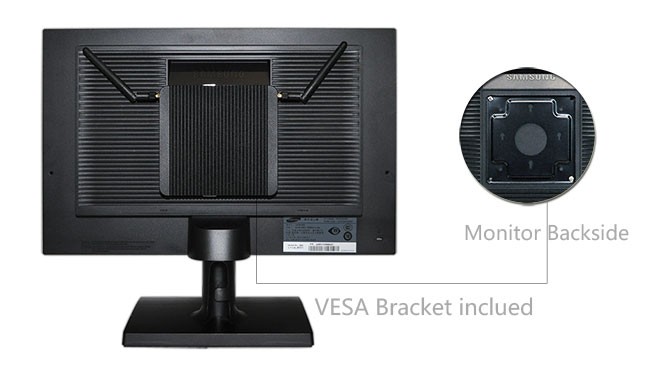

1 x VESA mouting bracket
1 x Screws
