Q710G4 4*i211AT Gigabit Lan Thin Client Mini Computer J3455 Quad Core Mini pc Fanless Firewall Support POE
price
$149.64 - $169.85 / case
Q710G4
1 case
Shenzhen
Quantity
- Place of Origin:Guangdong, China
- Brand Name:QOTOM
- Model Number:Q710G4
- Products Status:New
- Warranty(Year):1-Year
- Use:For Business

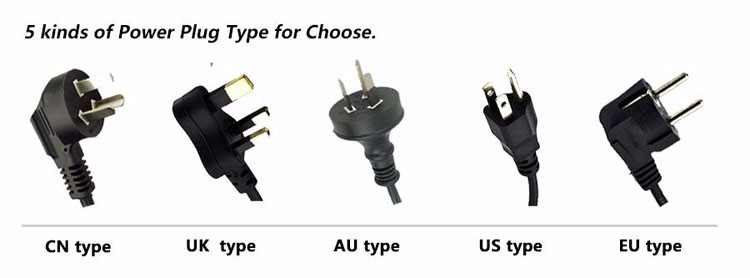

- Plugs Type:US, JP, CN, AU, UK, EU
- Hard Drive Type:SSD+HDD
- Video Memory Type:With the main memory
- Operating System:Linux
- Processor Type:Intel Celeron
- Graphics Card Chipset:Integrated Card
- RAM Type:DDR3
- HDD Rotation Speed:SSD
- Mouse & Keyboard:NO
- Processor Core:Quad Core
- Processor Series:Intel Celeron
- Video Memory:NONE
- Video Card:Intel HD Graphics 500
- After-sales Service:Return and Replacement
- CPU:Intel Celeron J3455
- Operating system:win10,linux untangle etc.
- Memory:1 x DDR3L SO-DIMM Socket (Up to 8G, 1600MHz)

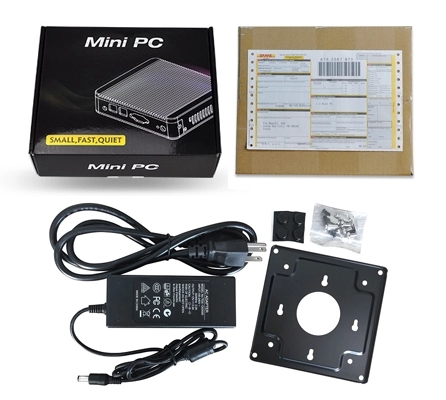

- Packageing List:Power adapter ,VESA mount bracket, 2 antennas
- Processor Frequency:1.5GHz,up to 2.3GHz
- customize logo:free
- Power Adapter For POE:1 x 48V2A, DC Jack: Mini DIN (Optional)
- Power Adapter:1 x 12V3A, DC Jack: 5.5mm/2.5mm
- Product Name:Mini PC Computer
- WIFI:Support
Product Description
Model | Q710G4 | |
Dimension | 187*111*50mm(L*H*W) | |
Consumption | TDP 15W | |
processor | Intel Celeron Apollo Lake SOC Processor, Default J3455 Quad Core Processor, 1.5GHz, Up to 2.3GHz 2M Cache | |
Memory | Support DDR3 RAM SO-DIMM 1333/1600 MHz,1.35V up to 8GB memory | |
Hard Disk | support SSD ( MSATA / SATA) support HDD (2.5 inch SATA HDD ) | |
Graphics | Intel HD Graphics 500 | |
LAN | 4 x Intel I211-AT Gigabit LAN (Support POE) | |
Audio Solution | Realtek ALC662 6-Channel HD Audio | |

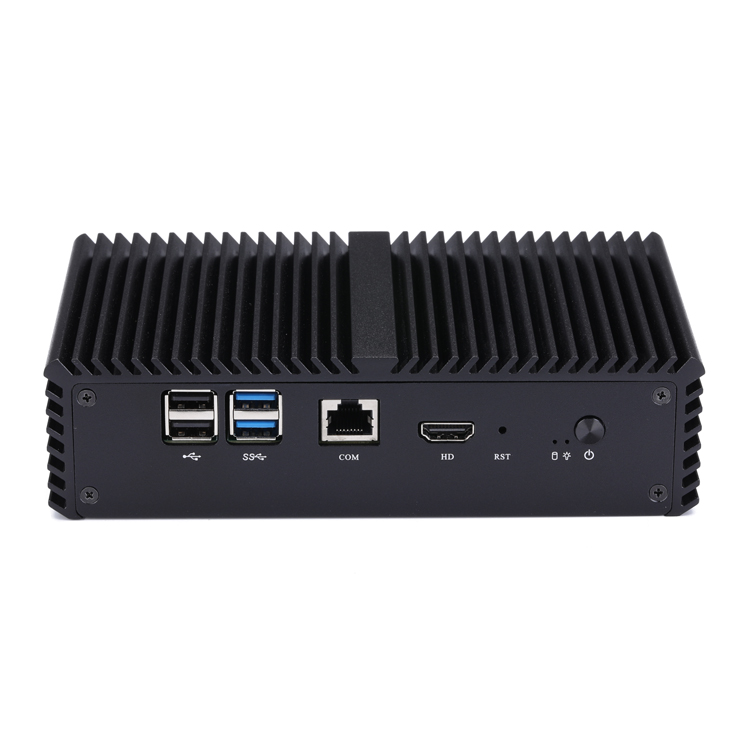

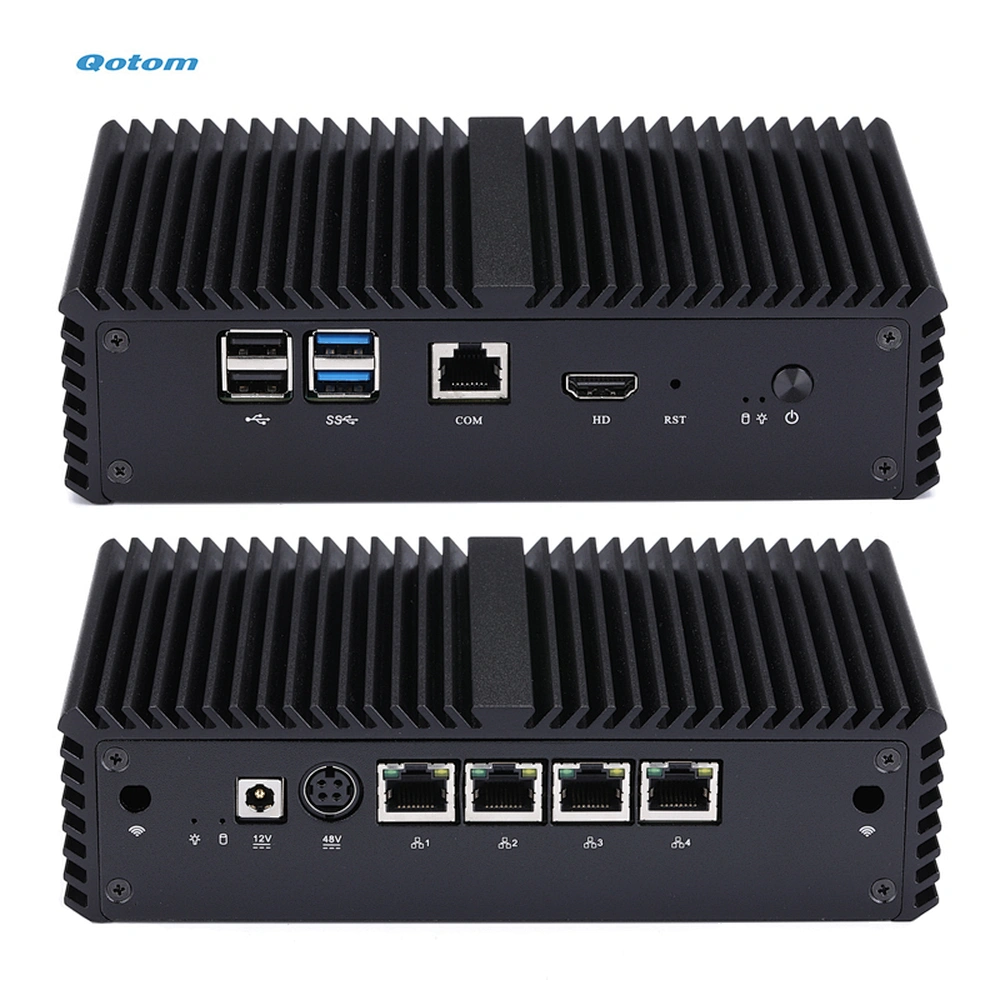

Front-Panel | • power on/off button • HDD LED, Power LEDs(optional) • 2 x USB 3.0 Ports • 2 x USB 2.0 Ports • 1 × COM ports(RS232/RS485/RJ45) • HD Video ports | |
Internal | • 1 x Minipcie port (for mSATA SSD) • 1 x Minipcie port (for WIFI/4G Module) • 1 x DDR3L SO-DIMM Memory Slot • 1 x Automatically boot jumper • 1 x GPIO header 1 x SIM Card slot (optional) | |

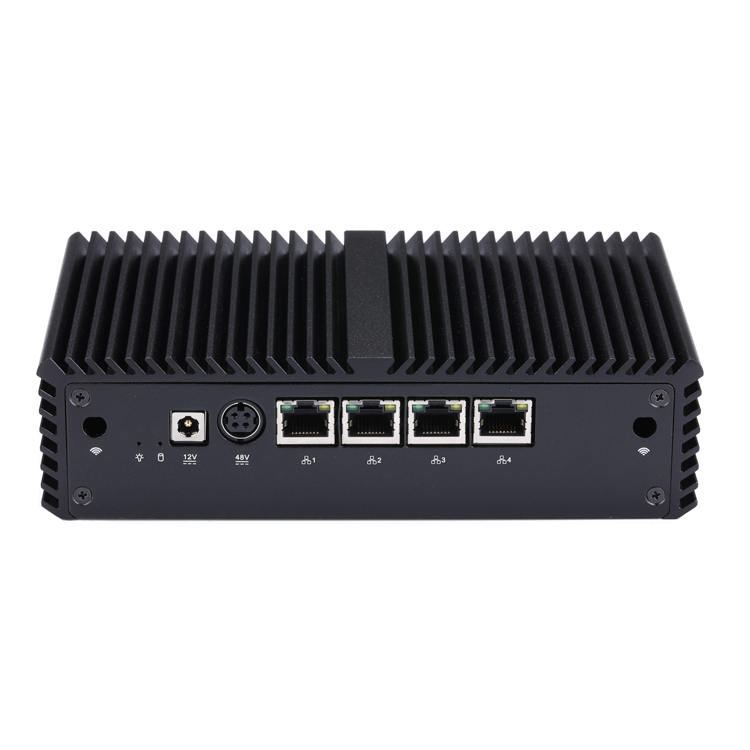

Back-Panel | • 1 ×12V DC jack ,48V DC Jack for POE • 4 x Intel RJ-45 Ports with POE power on/off button • HDD LED, Power LEDs | |
System | UEFI Windows 10 / Linux | |
Configuration for your choice | ||
Memory | 2GB / 4GB / 8GB DDR3L SO-DIMM | |
Storage | 16G/32G/64G/128G/256G mSATA SSD and 500G / 1TB 2.5"HDD | |
WiFi | optional | |

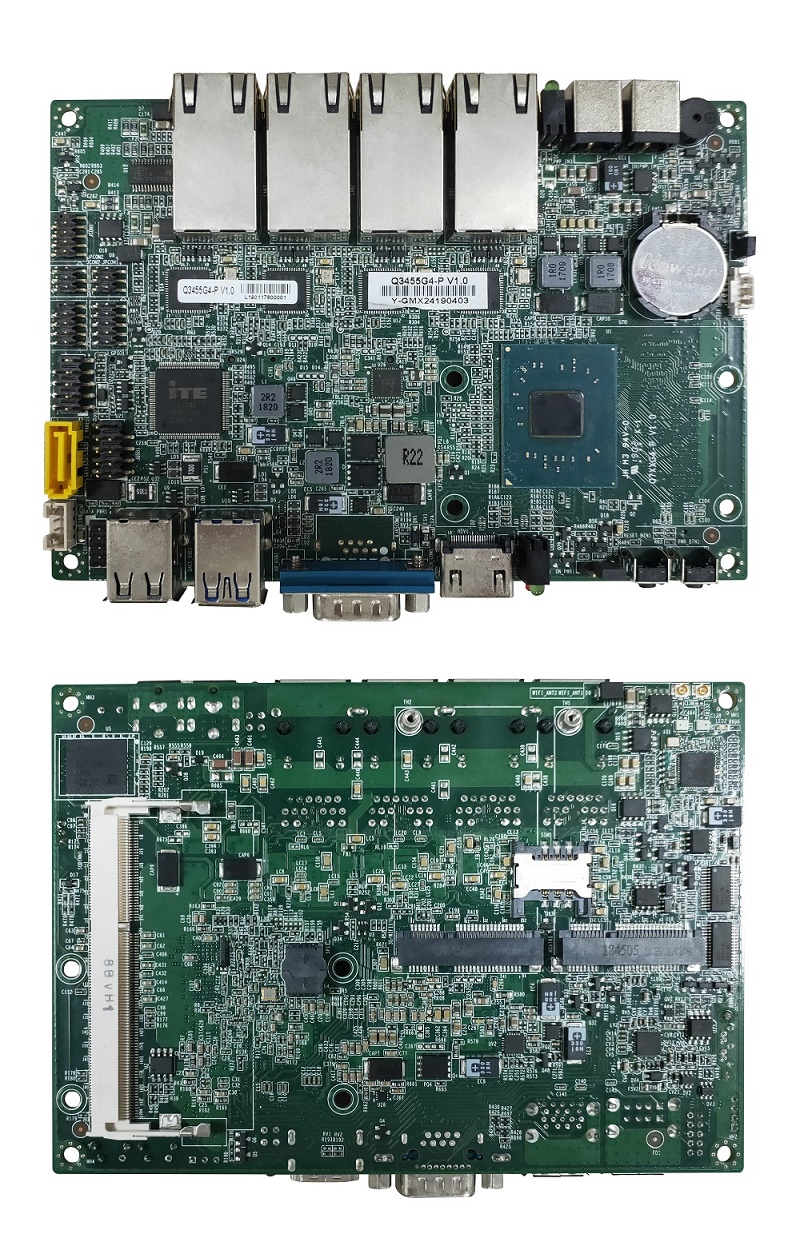

Detailed Images
