OEM Q400P Fanless Broadwell 3215U 4th 5th Gen Core i3 i5 i7 4 RS232 HD Port Industrial Mini PC Computer Desktop
price
$89.00 - $252.00 / set
Q400P
FOB
1 set
1000set / Month
Shenzhen
30Day
Quantity
- Place of Origin:Guangdong, China
- Brand Name:Qotom mini pc computer desktop
- Model Number:Q400P mini pc desktop
- Products Status:New
- Warranty(Year):1-Year
- Use:Industrial core i3 mini pc i5 i7
- Plugs Type:US, JP, CN, AU, UK, EU
Product Description
Q400Pmini pc computer desktop
Main Features
• 2 x HD
• 4 x RS232 COM
• 4 x USB 3.0, 2 x USB 2.0, 1 x SATA 3
• 2 x Mini-PCIe, 1 x mSATA
• 2 x Realtek Gigabit LAN
Category | Descriptions | ||
Model | No. | Q400pcore i3 mini pc desktop | |
Processor System | CUP(Support） | Q401Pmini pc desktop:Intel Celeron 2955U Dual Core Processor, 1.4GHz, 2M Cache Q450P mini pc desktop:Intel core i5 4200U Dual Core Processor, 1.4GHz up to 1.9GHz, 3M Cache Q470P mini pc desktop:Intel Core i7 4500U Dual Core Processor, 1.8GHz up to 3.0GHz, 4M Cache Q405P mini pc desktop:Intel Celeron 3205U Dual Core Processor, 1.5GHz, 2M Cache Q405P mini pc desktop:Intel Celeron 3215U Dual Core Processor, 1.7GHz, 2M Cache Q435P core i3 mini pc:Intel Core i3 5005U Dual Core Processor, 2.0GHz, 3M Cach Q455P mini pc computer desktop:Intel Core i5 5200U Dual Core Processor, 2.2GHz up to 2.7GHz, 3M Cach Q475P mini pc computer desktop:Intel Core i7 5500U Dual Core Processor, 2.4GHz up to 3.0GHz, 4M Cach | |
CUP TDP | 15W | ||
Memory | 1 x DDR3L SO-DIMM Socket (Up to 8G, 1333/1600MHz） | ||
Chipset | By CPU | ||
Graphics | Intel® HD Graphics | ||
LAN Chipset | 2 x Realtek Gigabit LAN | ||
Audio | Realtek ALC662 HD Audio | ||
Watch Dog | Yes | ||
Front I/0 | Power Button | 1 | |
LED | 1 x Power LED | ||
Serial Port | 1 x RS-232 | ||
USB | 2 x USB2.0, 2 x USB3.0 | ||
Rear I/O | Power | 1 x DC Jack | |
LAN | 2 x RJ-45 Port for Gigabit LAN | ||
Video Output | 2 x HD | ||
Audio | 1 (Mic-in, Line-out) | ||
USB | 2 x USB 3.0 | ||
Serial Port | 3 x RS-232 | ||
1 x 2.5-inch HDD/SSD | |||
1 x Mini PCIe for mSATA SSD | |||
Expansion | mSATA | 1 x Full-length Mini PCIe for SSD | |
Mini PCIe | 1 x Full-length Mini PCIe for 4G (USB Device) 1 x Half-length Mini PCIe for Wi-Fi | ||
GPIO | 1 x 2.0 Pitch Header (Option) | ||
SIM Card Slot | 1 | ||
Automatically Boot Jumper | 1 | ||
DC-in | Header | ||
VGA | NO | ||
RS-485 | NO | ||
Power Requirement | Power Adapter | 12V3A | |
DC Jack | 5.5mm, 2.5mm | ||
Environmental | Operating Temp | 0°C~50°C | |
Non-Operating Temp | -20°C~80°C | ||
Humidity | 10%~90% | ||
Mechanical | Material | Aluminium Alloy | |
Dimension | 155 x 127 x 48mm | ||
Weight | 1kg | ||

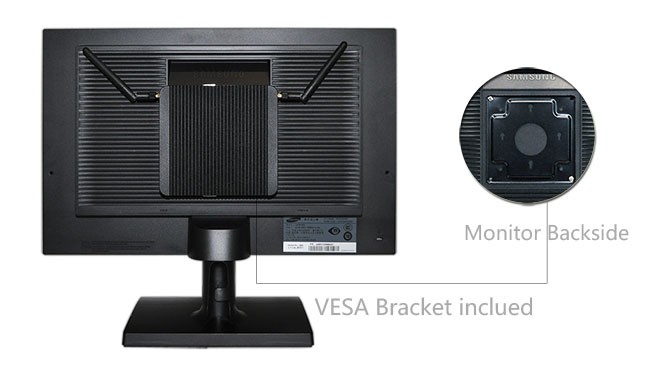

Mounting | VESA Mounting Bracket | ||
Packaging Dimension | 261 x 218 x 75mm | ||
Kensington Lock | Support | ||
Cooling Mode | Fanless Design | ||
OS Support | Windows 7, Windows 8, Windows 10, Linux | ||
Detailed Images

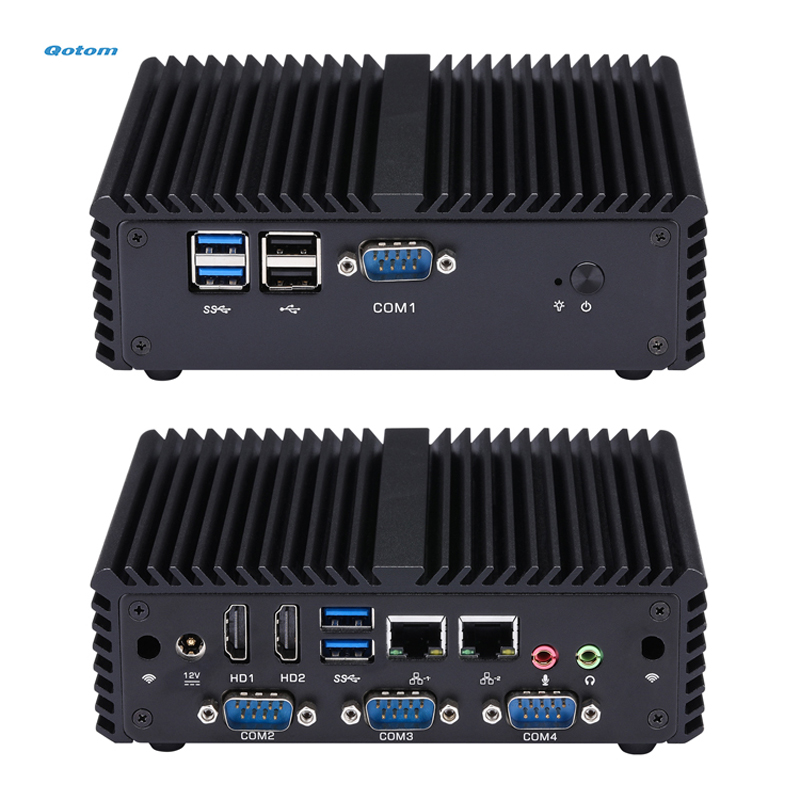

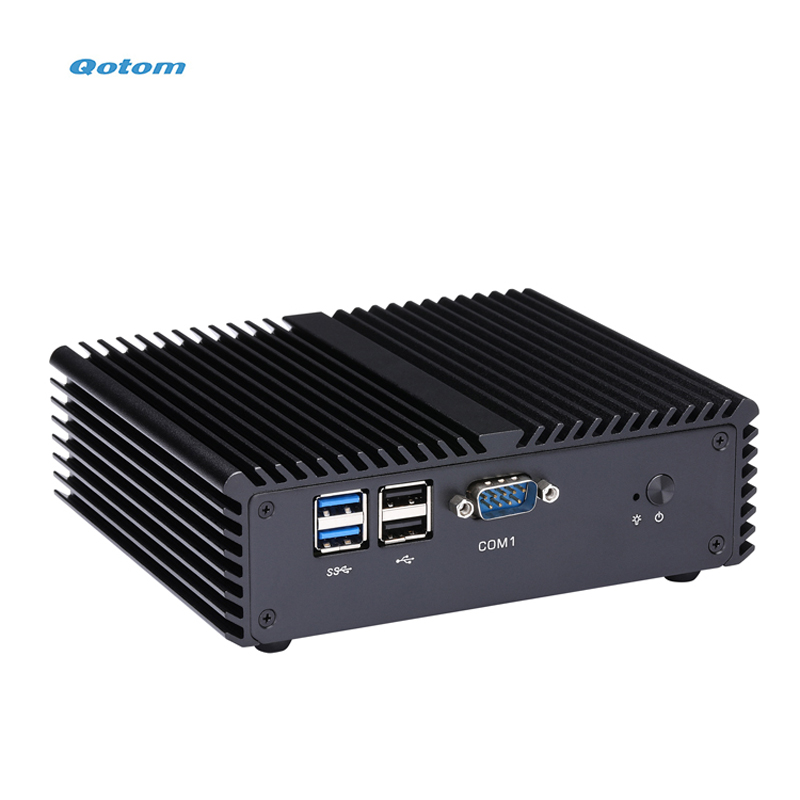

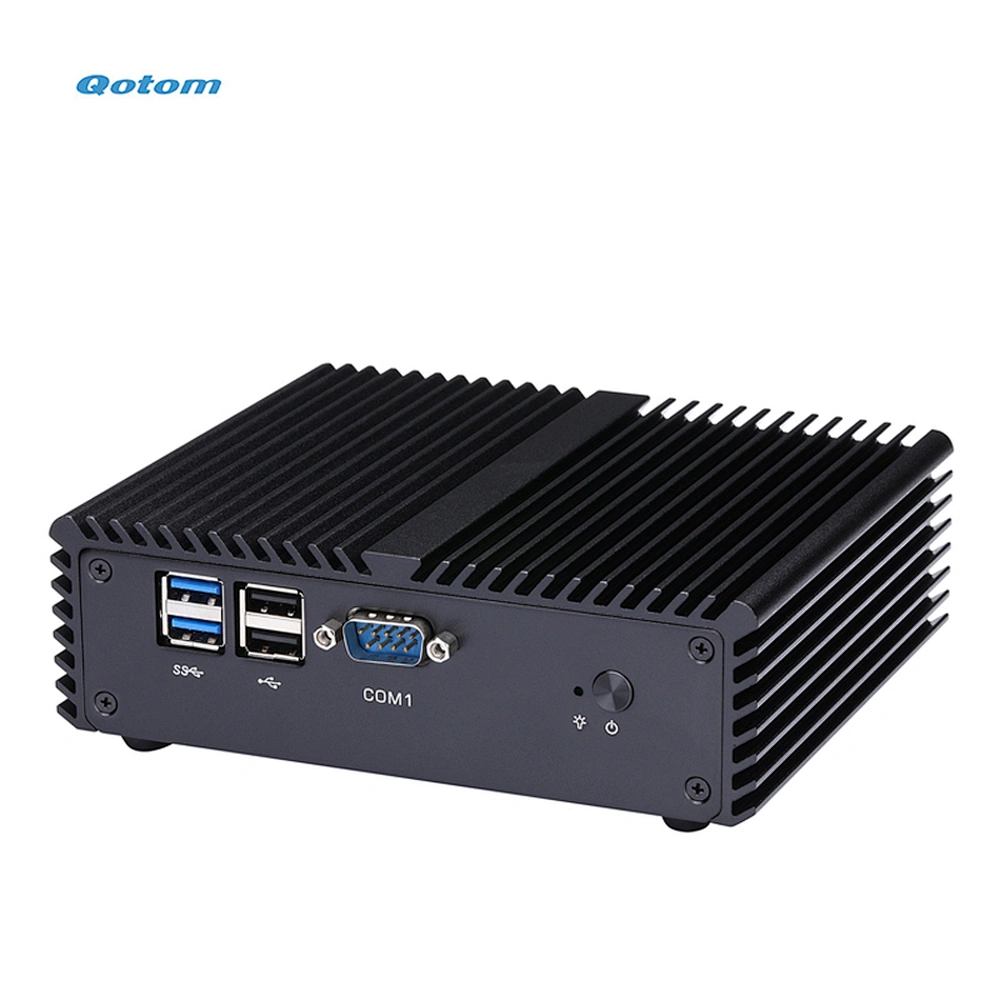

Mini PC Router Front I/O
1 x Power Button
1 x Power LED
2 x USB 3.0
2 x USB 2.0
1 x RS-232
mini pc computer desktop,core i3 mini pc,mini pc desktop

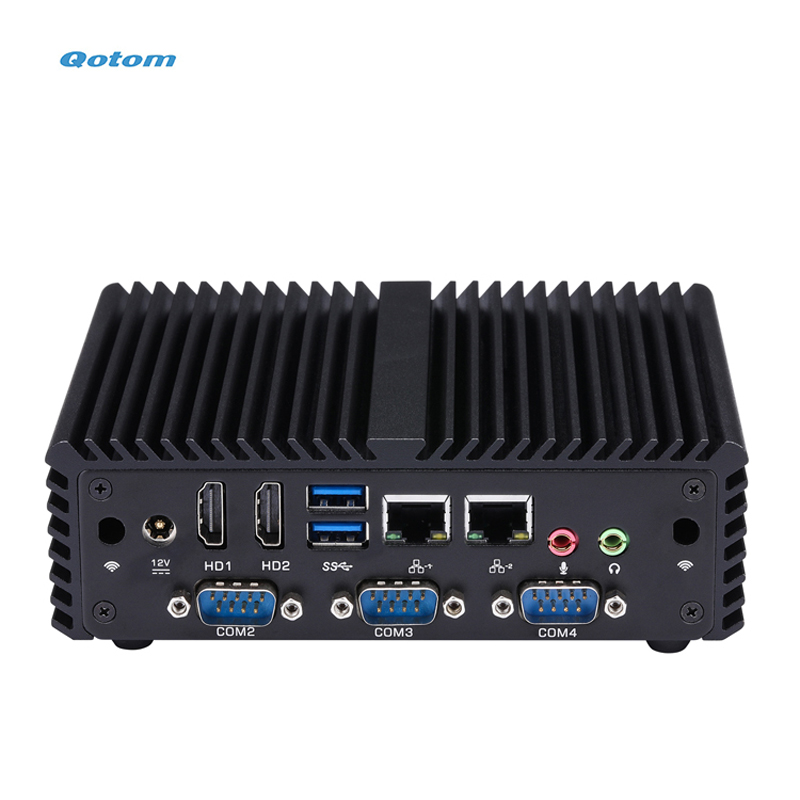

Mini PC Router Rear I/O
1 x DC Jack
2 x HD
2 x RJ-45 Port for Gigabit LAN
2 x USB 3.0 1 (Mic-in, Line-out)Audio
3 x RS-232

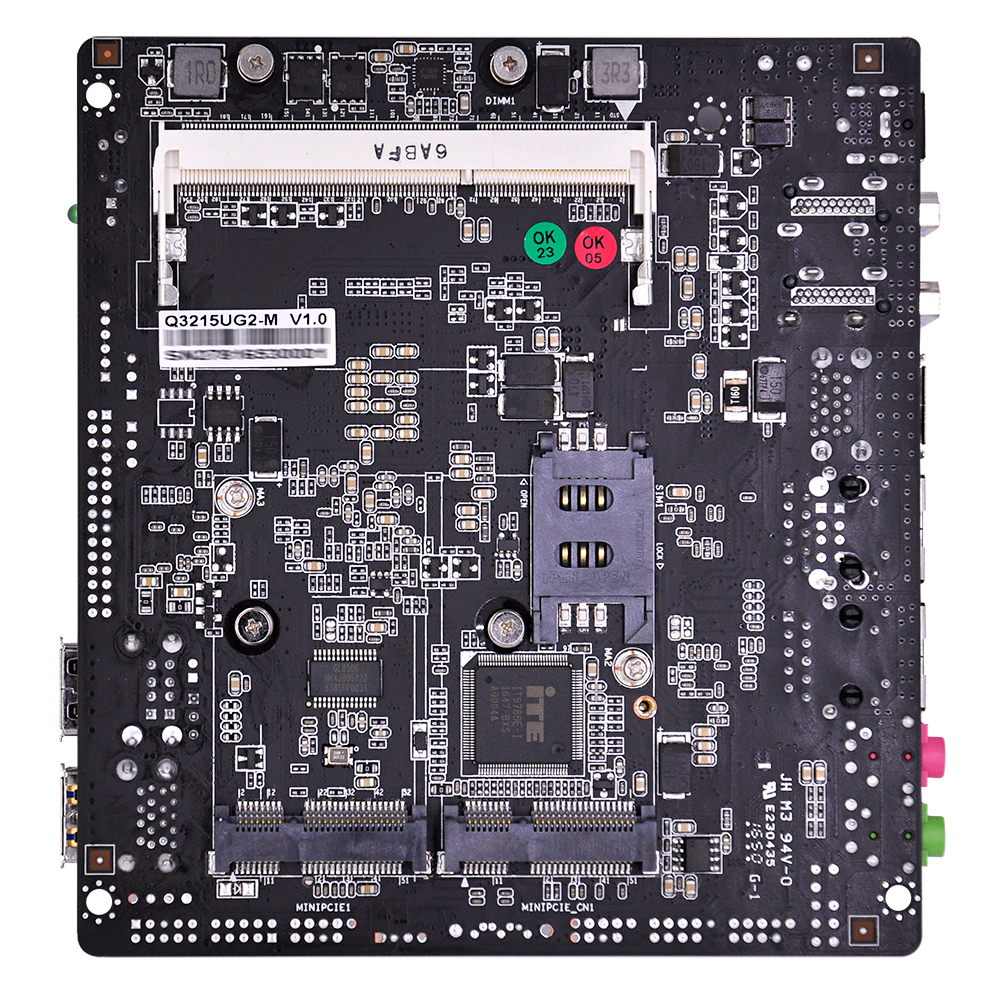

SIM & 4G LTE Module
SIM & 4G LTE Module
* A Full mini pcie slot on motherboard for 3G/ 4G Module.
* A SIM card slot onboard.
* Qotom do not supply any SIM card and LTE module. * When you buy LTE module, please get details like drivers from the supplier.
* Q400P Series only have dual antennas holes for WI-Fi by default. If you wanna install 3G/4G module and Wi-Fi at the same time,
please contact us in advance to get PC case with 4x Antennas holes.
* A Full mini pcie slot on motherboard for 3G/ 4G Module.
* A SIM card slot onboard.
* Qotom do not supply any SIM card and LTE module. * When you buy LTE module, please get details like drivers from the supplier.
* Q400P Series only have dual antennas holes for WI-Fi by default. If you wanna install 3G/4G module and Wi-Fi at the same time,
please contact us in advance to get PC case with 4x Antennas holes.
Operating System
• Preinstall inactive Windows 10 for test and Qotom do not provide any Windows license. • Supports Windows 7/ 8/ 10, Linux, etc.
• Buyer can reinstall operating system.
• F11 key boot from USB Drive. Delete key enter BIOS.
• Buyer can reinstall operating system.
• F11 key boot from USB Drive. Delete key enter BIOS.
Packing & Delivery
Packing List: mini pc computer desktop,core i3 mini pc,mini pc desktop
1 x Device
1 x 12V3A Power adapter with cable
1 x VESA mouting bracket
1 x Screws
Packing:mini pc computer desktop,core i3 mini pc,mini pc desktop
We use good quality paper packing box and EPE to protect the product. It's a black color box without company logo.
(OEM packing can be acceptable, MOQ500pcs/times)
