Q1000X 8th 10th Gen Intel Core i3 i5 i7 6 RS-232 Fanless Mini PC Windows 11
price
$139.00 - $152.00 / piece
Q1012X
FOB
1 piece
3000piece / Month
Shenzhen
30Day
Quantity
- Place of Origin:Guangdong, China
- Brand Name:OEM Fanless Mini PC
- Model Number:Qotom Mini PC Windows 11
- Products Status:New
- Warranty(Year):1-Year
- Use:Industrial Mini PC
Specification
CPU | Q1012X:Intel 8th Gen Celeron Whiskey Lake SOC Processor Default 4305U Dual Core 15W Processor | |
CPU TDP | 15W | |
Memory | 1 x DDR4 SO-DIMM Socket (Up to 32G, 2133/2400MHz) | |
Chipset | By CPU | |
Graphics | Intel® UHD Graphics for 8th Gen Intel® Processors | |
LAN Chipset | 2 x Intel I225V Gigabit LAN | |
Audio | Realtek ALC662 HD Audio | |
Watch Dog | Yes | |

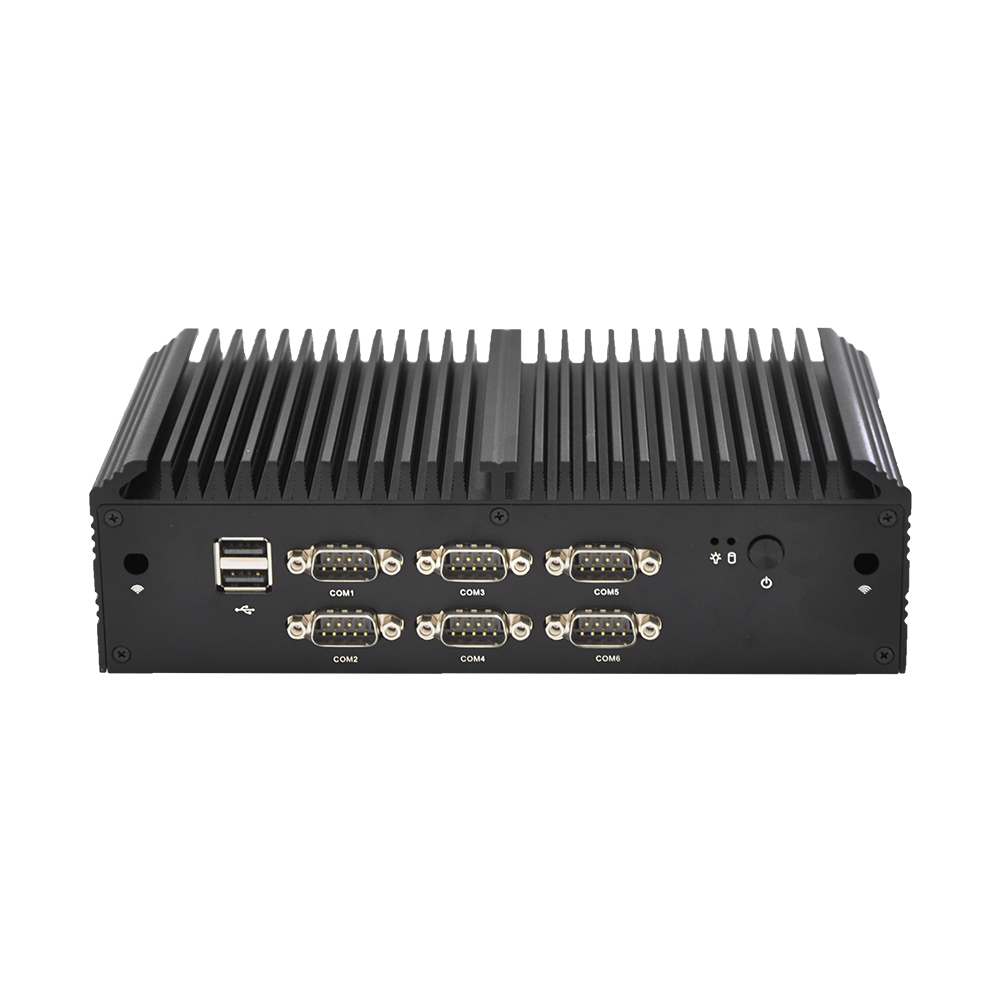

Front I/O | Power Button | |
Power Button | 1 | |
LED | 1 x Power LED, 1 x HDD LED | |
USB | 2 x USB 2.0 | |
Serial Port | 6 x RS-232 (COM1,COM2 can be set as RS485) | |

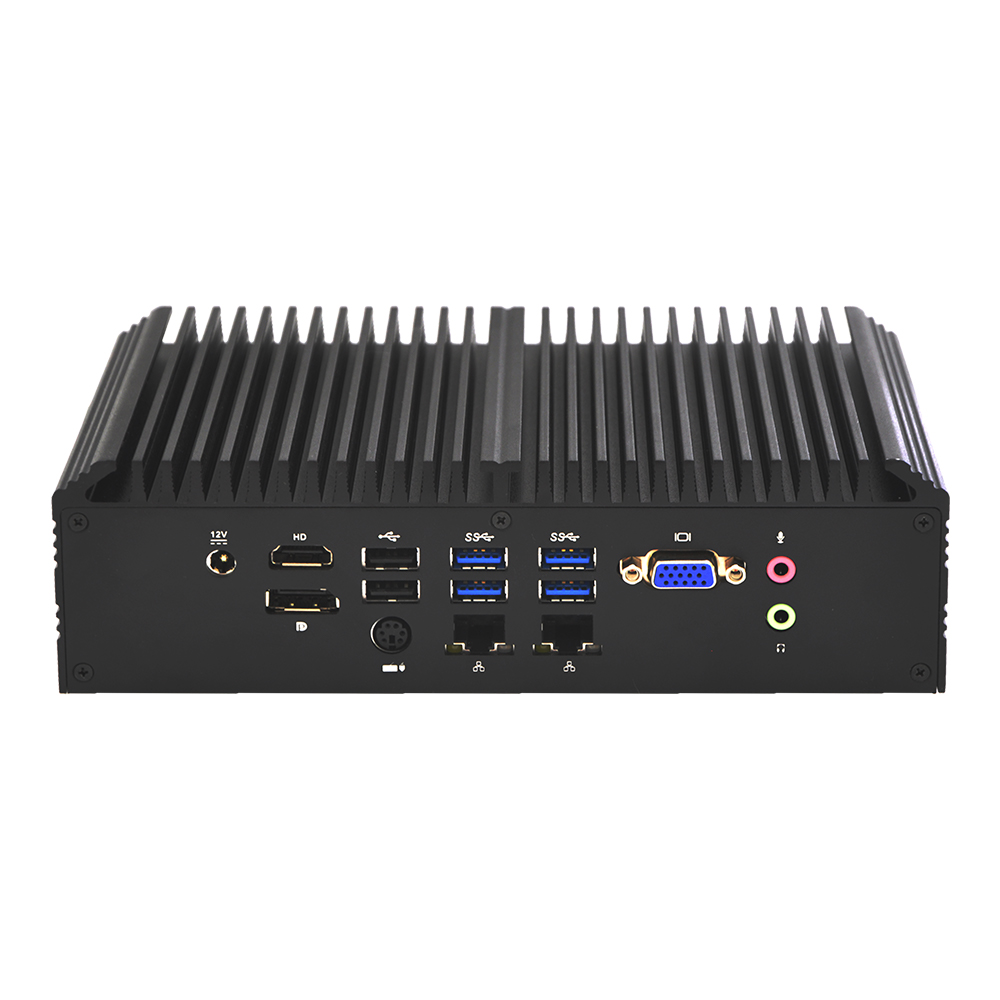

Rear I/O | ||
Power | 1 x DC Jack | |
Video Output | 1 x DP, 1 x HD, 1 x VGA | |
LAN | 2 x RJ45 Port for 2.5G LAN | |
USB | 4 x USB 3.0, 2 x USB 2.0 | |
Audio | 2 (Mic-in, Line-out) | |
PS/2 | 1 x PS/2 | |
Storage | ||
Type | 1 x 2.5-inch HDD/SSD 1 x M key M.2 for SSD (Type: 2260, 2280mm) | |
OS Support | ||
OS | Mini PC Windows 1110, Linux | |
Expansion | ||
Mini-PCIe | 1 x Full Size for 3G/4G | |
M.2 | 1, M key for SSD (Type: 2280mm) 1, E key for WI-FI (Type: 2230mm) | |
SIM Card Slot | 1 | |
Automatically Boot Jumper | 1 | |
RS232 | COM2/COM3 supports 5V/12V | |
GPIO | 1 x 2.0 Pitch Header | |
RS-485 | COM1/COM2 can be set up as RS-232/RS-485 | |
COMS Clear Jumper | 1 x 2.54 Pitch Header | |
Power Requirement | ||
Power Adapter | 12V5A | |
DC Jack | 5.5mm,2.5mm | |
Mechanical | ||
Material | Aluminum | |
Dimension | 220 x 128 x 62mm | |
Weight | 2.5kg | |
Mounting | VESA Mounting Bracket | |
Packaging Dimension | 290 x 265 x 90mm | |
Kensington Lock | No | |
Cooling Mode | Fanless Design | |
Mini PC Windows 11,Fanless Mini PC,Industrial Mini PC
Q1000X Industrial Mini PC Series Other specification information：
| ordering code | Case | Code Name | Processor Type | Processor Number | # of Cores | # of Threads | Base Frequency | Max Frequency | Cache | Processor Graphics |
| Q1012X | S10 | Whiskey Lake | Celeron | 4305U | 2 | 2 | 2.2GHz | / | 2M | Intel UHD Graphics |
| Q1020X | S10 | Whiskey Lake | Pentium | 5405U | 2 | 4 | 2.3GHz | / | 2M | Intel UHD Graphics |
| Q1030X | S10 | Whiskey Lake | Core i3 | 8145U | 2 | 4 | 2.1GHz | 3.9GHz | 4M | Intel UHD Graphics |
Q1052X | S10 | Coffee Lake | Core i5 | 8260U | 4 | 8 | 1.6GHz | 3.9GHz | 6M | Intel UHD 620 |
| Q1015X | S10 | Comet Lake | Celeron | 5205U | 2 | 2 | 1.9GHz | / | 2M | Intel UHD Graphics |
| Q1035X | S10 | Comet Lake | Core i3 | 10110U | 2 | 4 | 2.1GHz | 4.1GHz | 4M | Intel UHD Graphics |
| Q1055X | S10 | Comet Lake | Core i5 | 10210U | 4 | 8 | 1.6GHz | 4.2GHz | 6M | Intel UHD Graphics |
| Q1077X | S10 | Comet Lake | Core i7 | 10710U | 6 | 12 | 1.1GHz | 4.7GHz | 12M | Intel UHD Graphics |
Mini PC Windows 11,Fanless Mini PC,Industrial Mini PC
Q1000X Fanless Mini PC Custom Options:
| Category | Dascription |
| GPIO | 1 |
| RS-485 | 2 |
Details Images
SYSTEM
Q1000X Supports Mini PC Windows 11 10,Linux,etc. This pc can be used for Bank/Home/Office/POS machine/KIOSK
Default:We pre-install windows 10 (no licence)you also can install OS and software package by yourself. F11 key
boot from USB Drive. Delete key enter into BIOS.
boot from USB Drive. Delete key enter into BIOS.
Packing & Delivery

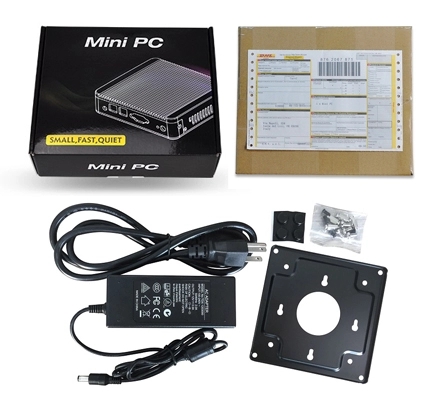

Packing
1 x Fanless Mini PC 1 x Power supply (adapter and cord)1 x VESA bracket & screws
1 x color box
* Power cord options: EU/ SA/ AU/ US/ CH Type
* Dual antennas if you buy Wi-Fi
* If you need neutral packaging box, tell us in advance.
* Contact us if you need Motherboard User Manual and Windows drivers.
1 x color box
* Power cord options: EU/ SA/ AU/ US/ CH Type
* Dual antennas if you buy Wi-Fi
* If you need neutral packaging box, tell us in advance.
* Contact us if you need Motherboard User Manual and Windows drivers.
