Category

Descriptions

Model

No.

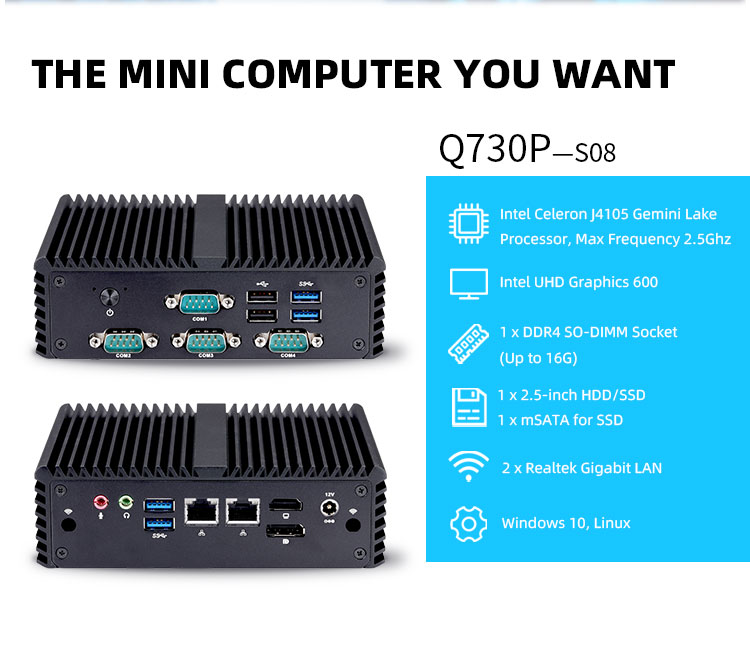

Q730P-S08 Mini PC

Processor System

CUP

Intel Ce-leron Gemini Lake Processor J4105 Quad Core Processor 1.5GHz Up to 2.5GHz 4M Cache

CUP TDP

10W

Memory

1 x DDR4 SO-DIMM Socket (Up to 16G)

Chipset

By CPU

Graphics

Intel UHD Graphics 600

LAN Chipset

2 x Realtek Gigabit LAN

Audio

Realtek ALC662 HD Audio

Watch Dog

Yes

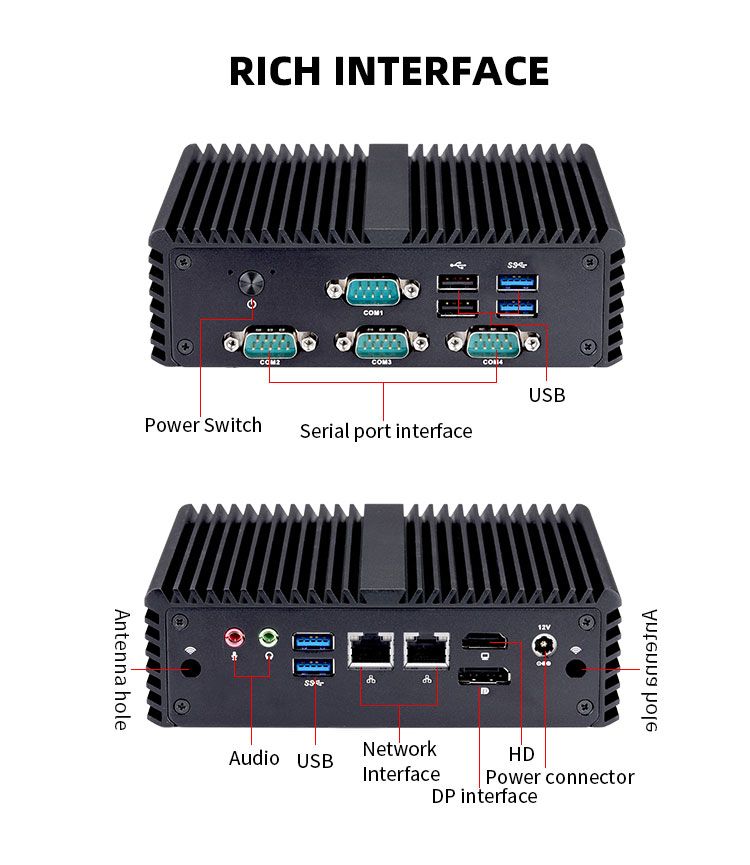

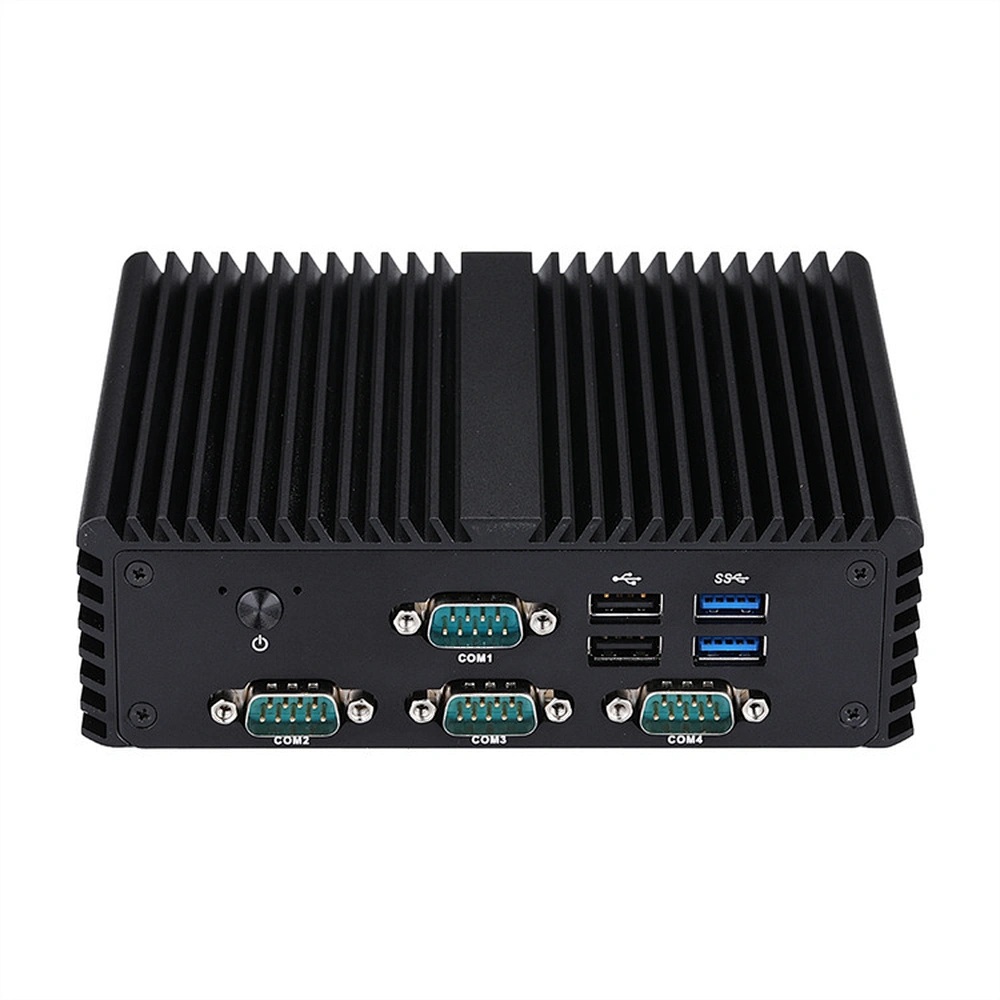

Front I/0

Power Button

1

LED

1 x Power LED, 1 x HDD LED

Serial

4 x RS-232

USB

2 x USB2.0, 2 x USB3.0

Rear I/0

Power

1 x DC Jack

Video Output

1 x HD, 1 x DP

USB

2 x USB 3.0

LAN

2 x RJ-45 Port for Gigabit LAN

Audio

1 (Mic-in, Line-out)

Storage

Type

1 x 2.5-inch HDD/SSD

1 x mSATA for SSD

Expansion

mSATA

1 x Full-length Mini PCIe for SSD

Mini PCIe

1 x Mini PCIe Full-length for 4G, Half-length for Wi-Fi

M.2

1 x M.2 for Wi-Fi (E key, 2230)

GPIO

1 x 2.0 Pitch Header (Option)

VGA

0

SIM Card Slot

1

Clear COMS Jumper

1

Automatically Boot Jumper

1

Power Requirement

Power Adapter

12V3A

DC Jack

5.5mm, 2.5mm

Environmental

Operating Temp

0°C~50°C

Non-Operating Temp

-20°C~80°C

Humidity

10%~90%

Mechanical

Material

Aluminium Alloy

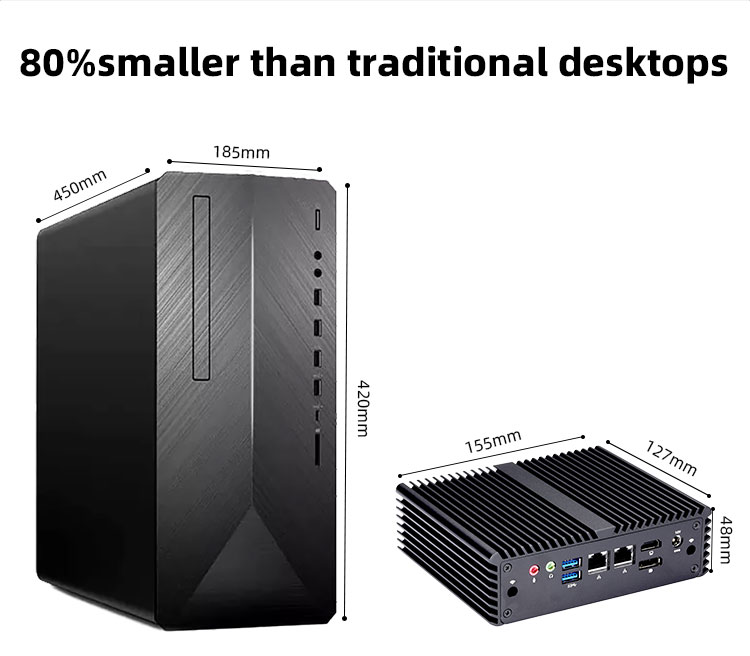

Dimension

155 x 127 x 48mm

Weight

0.85kg

Mounting

VESA Mounting Bracket

Packaging Dimension

261 x 218 x 75mm

Kensington Lock

No

Cooling Mode

Fanless Design

OS Support

Win 10,Linux
